LS-1

"DUB SHOT"

knob 1:  LFO control (siren speed)

knob 2:  VCO control (tone freq)

sw 1;  LFO wave form (3 positions)

sw 2:  VCO up-down mode (3 positions)

​

9v DC 450mA

AC power 100-240v worldwide

polarity protection circuit

100 x 62 x 88 mm

163 g

​

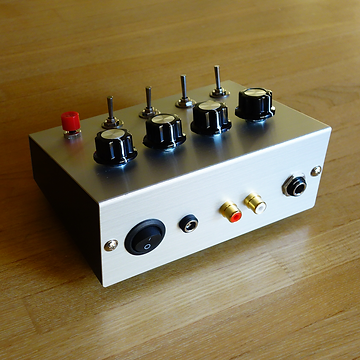

LS-2

"DUB CHAMBER"

knob 1:  LFO control (siren speed)

knob 2:  VCO control (tone freq)

knob 3:  Delay Time control

knob 4:  Echo Feedback control

sw 1;  LFO wave form (3 positions)

sw 2:  VCO up-down mode (3 positions)

sw 3:  LFO extra mode (2 positions)

sw 4:  echo on-off (2 positions)

​

9v DC 450mA

AC power 100-240v worldwide

polarity protection circuit

140 x 78 x 117 mm

418 g

​

LS-1  v1.1

LS-2  v1.1

取扱説明書

User's Manual (Japanese)
